SPECIFICATIONS
- Large LED Display
- Rugged Platform Scales
- Functions Include Display Hold, Auto Power off, Unit Switch, Zero/Tare
Specifications
Rugged Platform Scales
Large LED Display
Functions Include Display Hold, Auto Power off, Unit Switch, Zero/Tare

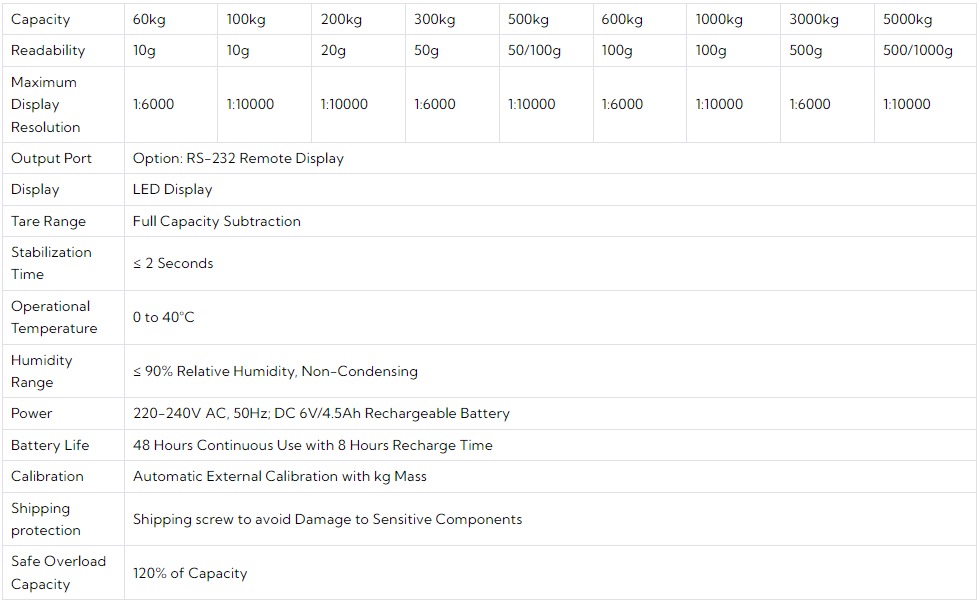

| Capacity | 60kg | 100kg | 200kg | 300kg | 500kg | 600kg | 1000kg | 3000kg | 5000kg |
| Readability | 10g | 10g | 20g | 50g | 50/100g | 100g | 100g | 500g | 500/1000g |
| Maximum Display Resolution | 1:6000 | 1:10000 | 1:10000 | 1:6000 | 1:10000 | 1:6000 | 1:10000 | 1:6000 | 1:10000 |
| Output Port | Option: RS-232 Remote Display | ||||||||
| Display | LED Display | ||||||||
| Tare Range | Full Capacity Subtraction | ||||||||
| Stabilization Time | ≤ 2 Seconds | ||||||||
| Operational Temperature | 0 to 40°C | ||||||||
| Humidity Range | ≤ 90% Relative Humidity, Non-Condensing | ||||||||
| Power | 220-240V AC, 50Hz; DC 6V/4.5Ah Rechargeable Battery | ||||||||
| Battery Life | 48 Hours Continuous Use with 8 Hours Recharge Time | ||||||||
| Calibration | Automatic External Calibration with kg Mass | ||||||||
| Shipping protection | Shipping screw to avoid Damage to Sensitive Components | ||||||||
| Safe Overload Capacity | 120% of Capacity | ||||||||
Note: subject to actual dimensions
